Slim Aluminium Sliding Doors · 2, 3 or 4 Panels
Aluminium Sliding Patio Doors
Slim-profile aluminium sliding patio doors with large glass panels, smooth rollers and secure locks — for homes, extensions and glass rooms.
2 or 3track options
~30 mmlow threshold option
Double-glazedor laminated glass
Any RALframe colour
Overview
More glass, less frame
Aluminium sliding patio doors glide open along twin or triple tracks, bringing in daylight and opening your home to the garden without taking up floor space. Slim aluminium frames maximise the glass area while remaining strong and secure.
Choose a low threshold of approximately 30 mm for easy access, or a raised threshold for exposed, rain-prone locations. Standard or thermal break profiles are available.
Security comes from a claw-locking system and toughened or laminated glass.
Key Features
Why choose aluminium sliding patio doors?
01
Space-saving
Panels slide past each other — no swing space needed.
02
Panoramic glass
Slim frames and large panes.
03
Weather-resistant
Seals and drainage for British weather.
04
Secure locking
Claw-lock system and toughened glass.
05
Low or raised threshold
Level access or extra weather protection.
06
Easy to clean
Smooth panels and low-maintenance aluminium.
Buying Guide
Which sliding patio door suits you?
Choose by threshold, insulation and number of panels.
Level garden access
A low threshold (about 30 mm) for wheelchairs, prams and children.
Exposed site
A raised threshold gives a better water barrier.
Heated living space
Choose thermal break sliding doors.
Very heavy panels
Choose lift and slide doors.
Technical Specification
Sliding patio doors — specification

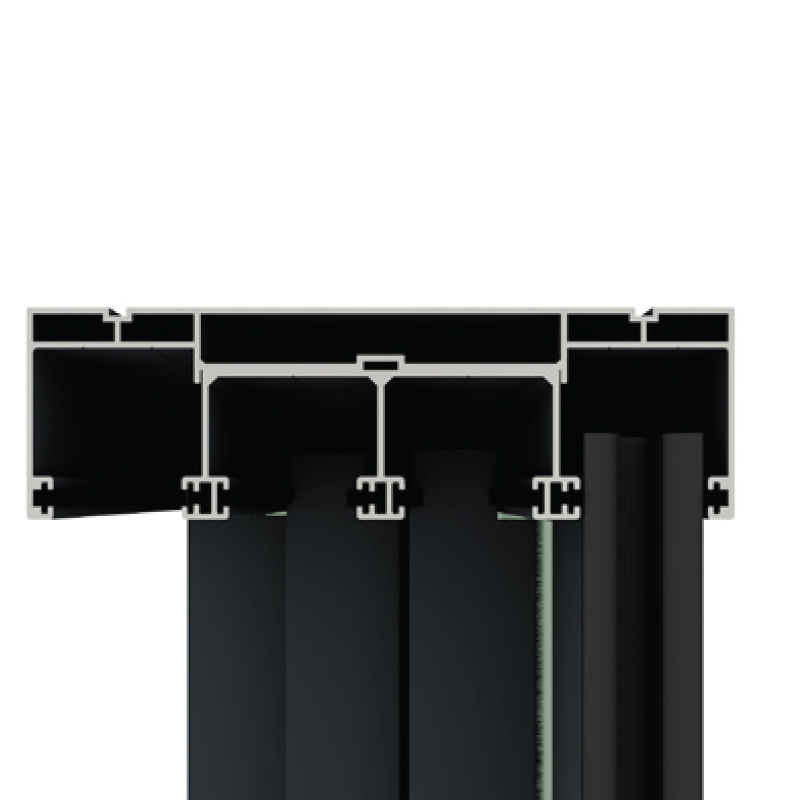

- Aluminium sliding system, twin or triple track.
- Low (~30 mm) or raised threshold.
- Glass: 8 mm or 10 mm toughened, 8 mm laminated or 4 + 12 + 4 mm insulated.
- Claw-locking security system.

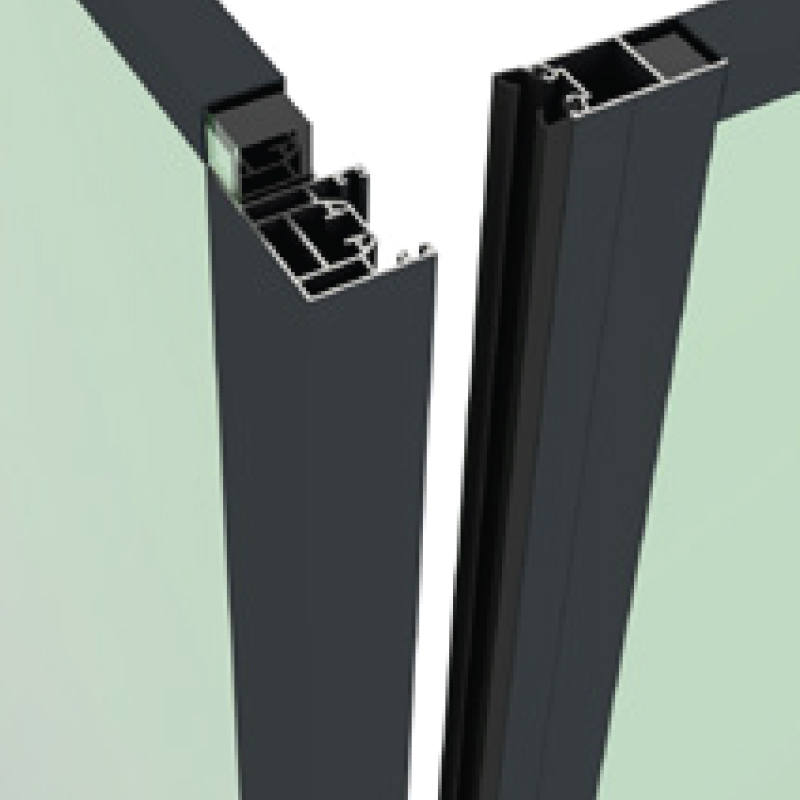

- Standard or thermal break profiles.
- Any RAL colour.
Glass Options
Glass choices
| Glass | Build-up | Benefit |
|---|---|---|
| Toughened single glass | 8 mm or 10 mm tempered | Slim, clear and economical |
| Laminated safety glass | 8 mm (4 + 4 mm) | Safety and security, ~60% sound reduction |
| Insulated double glazing | 4 + 12 + 4 mm tempered (Comfort option) | Thermal insulation, ~85% sound reduction |

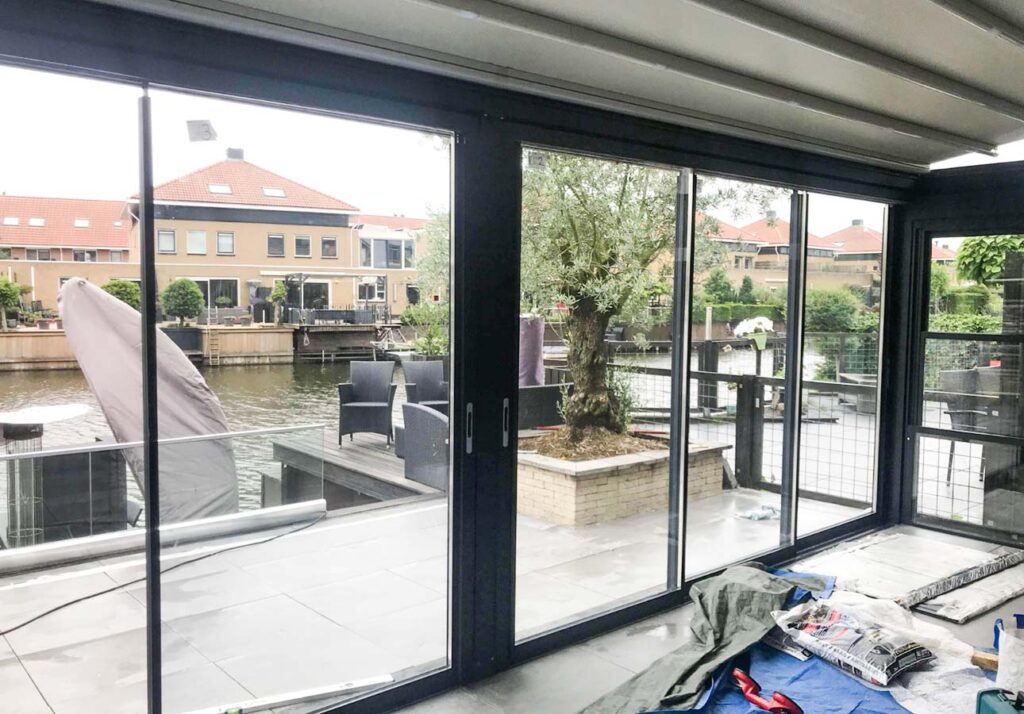

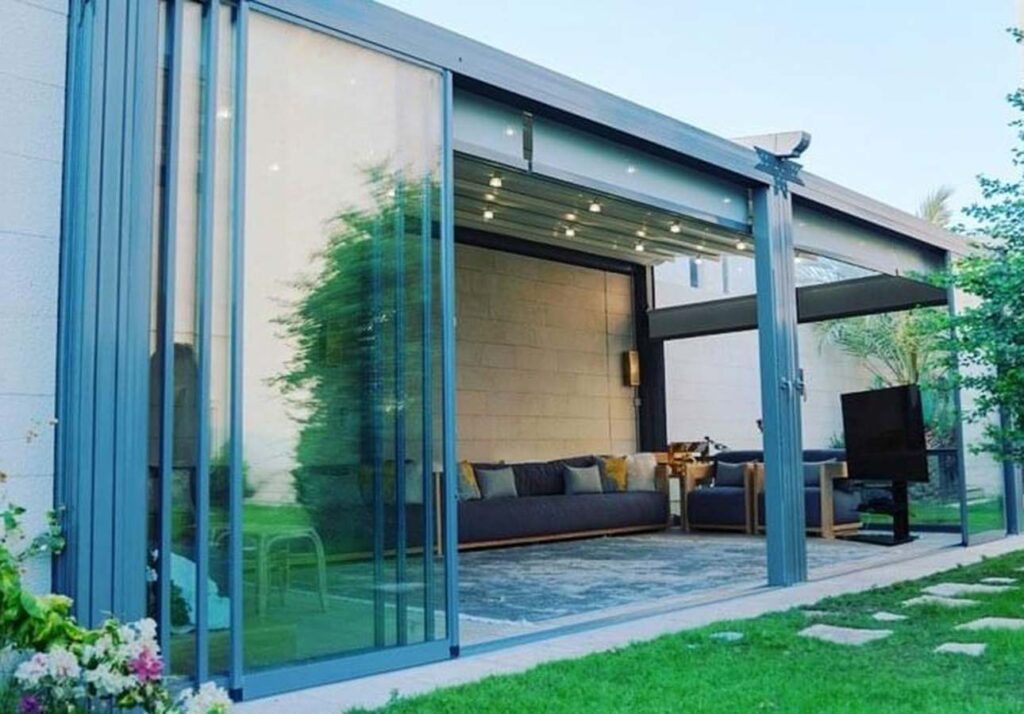

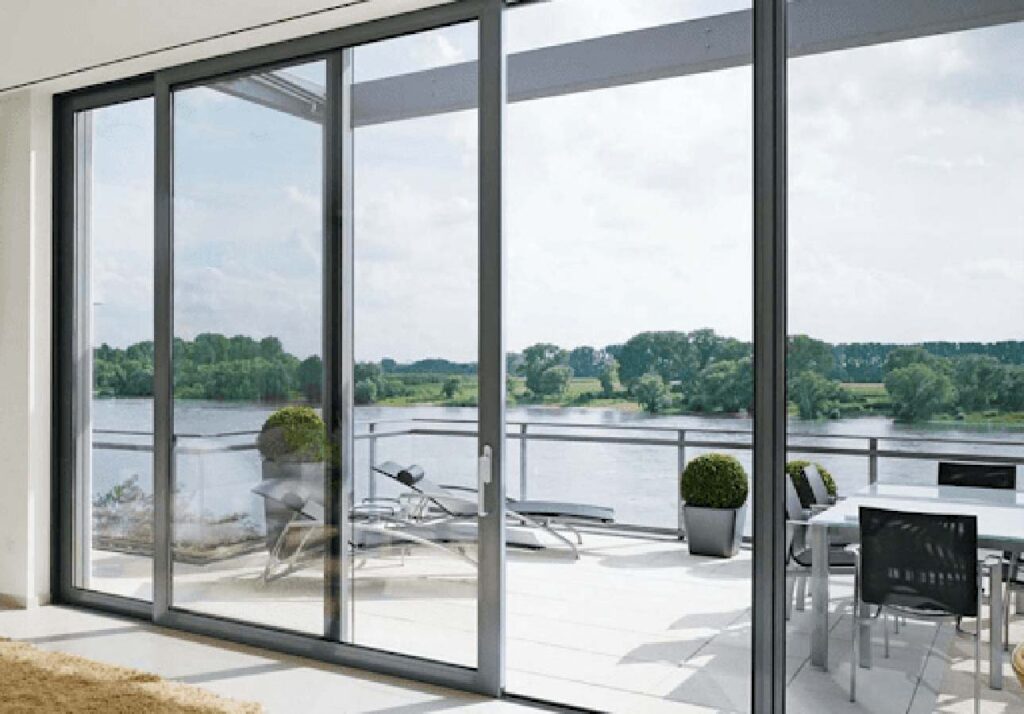

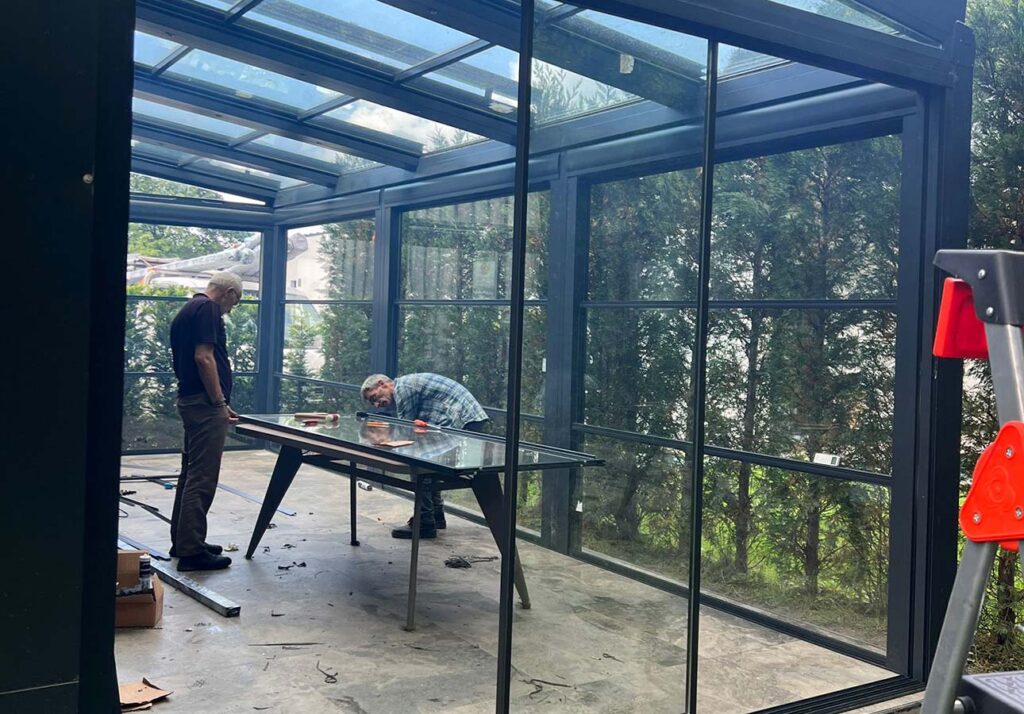

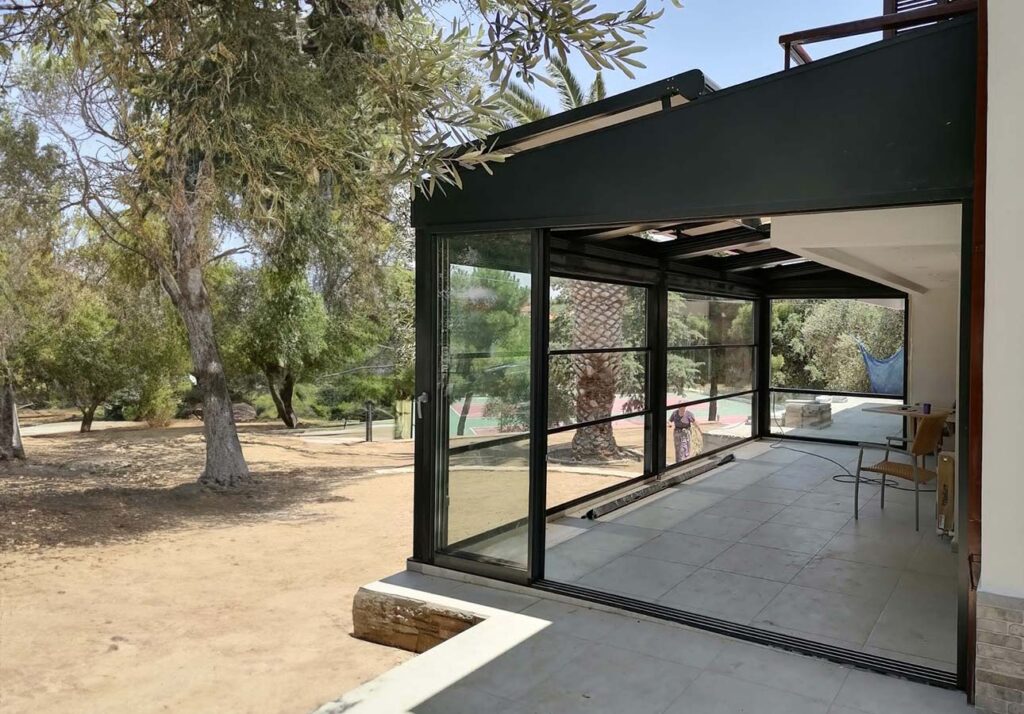

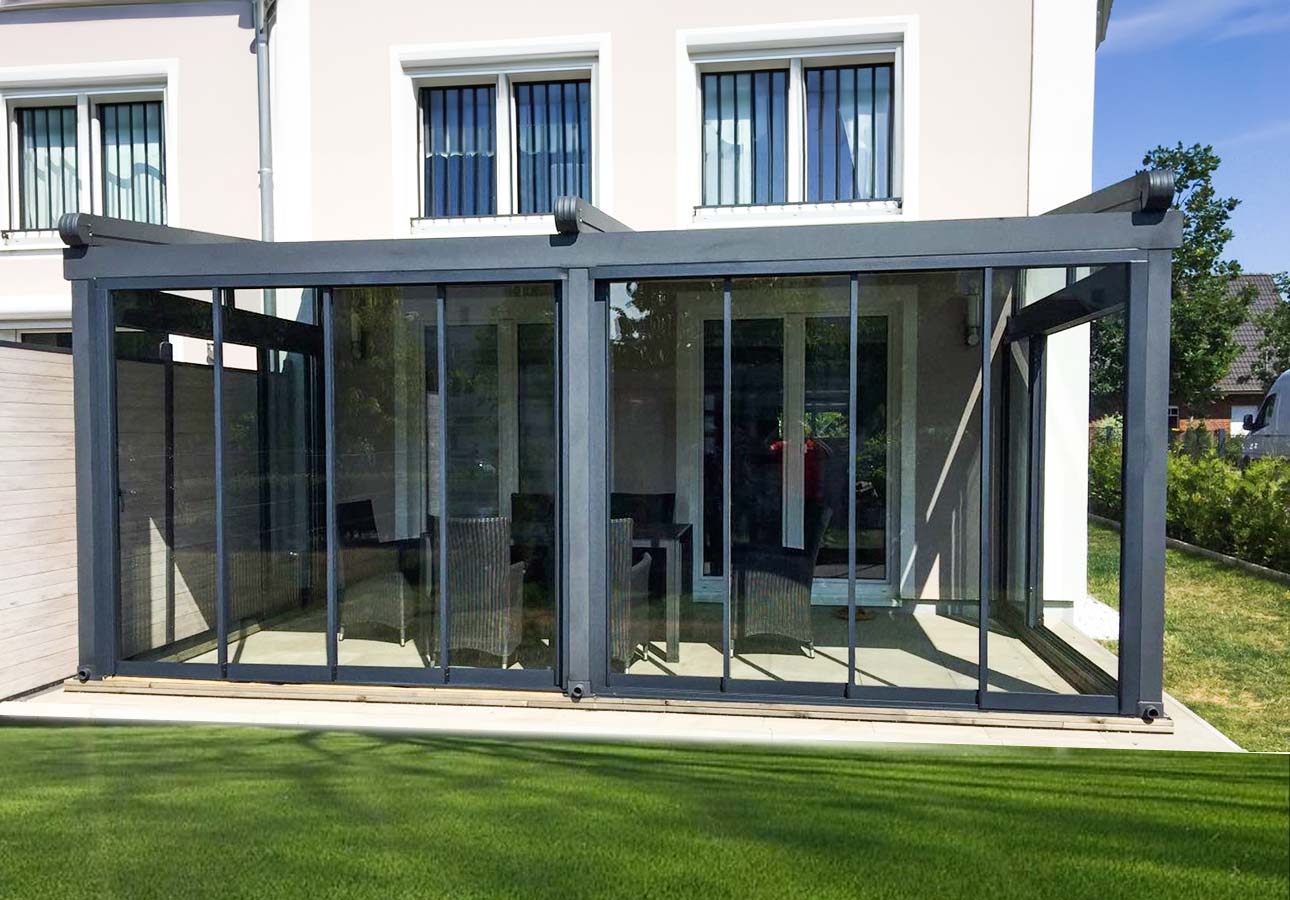

Gallery
Sliding patio door gallery
See it in motion
Sliding vs bifold doors
Sliding doors keep large panes and slim sightlines; bifold doors open almost the full width.
Pricing
Priced by width, height, glass and profile. Request a free quote.
FAQ
Aluminium sliding patio doors — FAQ
How low is the low threshold?
Approximately 30 mm, for easy access.
Can I have three panels?
Yes, twin and triple track systems are available.
Are they secure?
Yes, with claw locks and toughened or laminated glass.
Are they insulated?
Standard profiles with insulated glass give good insulation; choose thermal break profiles for maximum performance.
Free, No-Obligation Quote
Get your sliding patio door quote
Tell us about your opening and we will send a sliding patio door quote.
- Choose the panels, threshold and glass.
- Add the opening width and height in millimetres.
- Leave your details — we reply with a quote.
How to measure
- Measure the structural opening width at the top, middle and bottom.
- Measure the height at both sides.
- Note the floor finish and any step.
- Photograph the opening from inside and outside.
